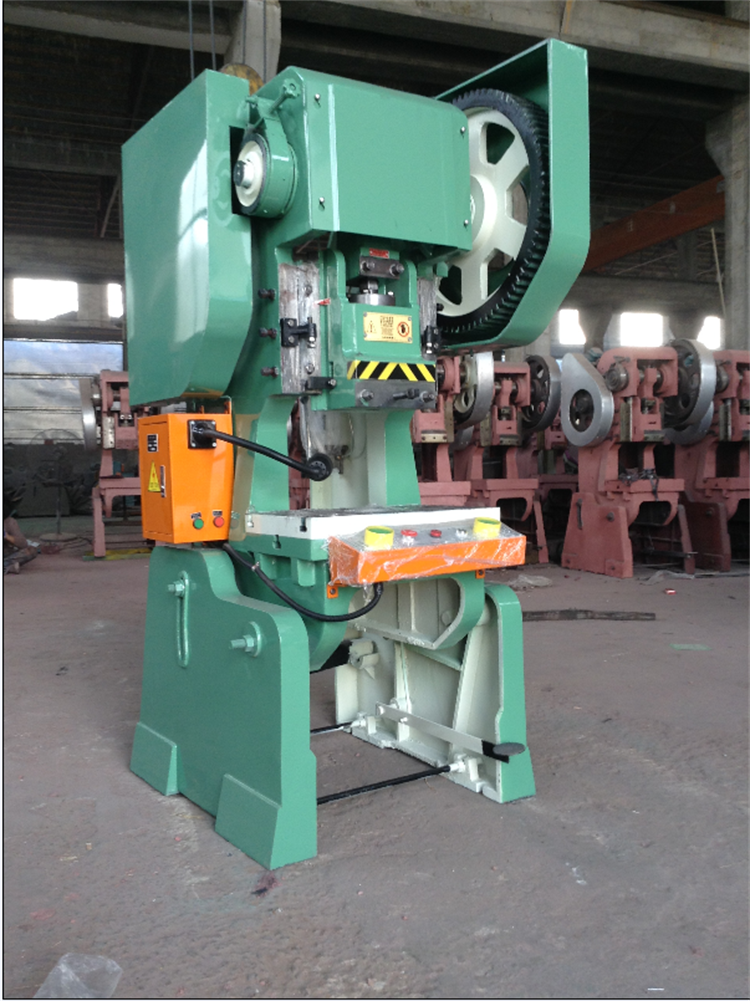

J21 Series 80t Open Type Mechanical Power Press Punching Machine with Fixed Table

บ้าน / สินค้า / J21 Series 80t Open Type Mechanical Power Press Punching Machine with Fixed Table

รายละเอียดสินค้า

คุณสมบัติหลัก
1, With foundry structure for better vibration resistance.
2, Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.
3, The good rigidity of Casting box structure slider
4, Built-in block collapsed overload protection device, the structure is simple, if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage
5, Four elongated triangular rail, easy for adjustment.
6, Adopts hands and foot switch operation buttons design, it’s easy to activate continuous, single and adjustment practices.
7, Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.

แอปพลิเคชัน

Punch widely used in electronics, communications, computers, household appliances, furniture, transportation, (automobile, motorcycle, bicycle) hardware parts stamping and forming. Basically be aimed at plank. Through the mold, we can make blanking, punching, forming, drawing, dressing, fine punching, shaping, riveting and extrusion parts and so on, widely used in various fields. For example, we use switch sockets, cups, cupboards, dishes, computer cases, there are a lot of accessories can be produced by punching through the mold.

ข้อมูลจำเพาะ

หน่วยJH21-25JH21-60JH21-110JH21-160JH21-200JH21-250JH21-250
ความจุตัน2560110160200250400
จังหวะmm80140180200250250280
Die Hightmm250300350400450500530
Slide Adjustmentmm507090100110120120
Depth of throatmm210270350390430450490
Shake holemm150150160180200200200
Presses weightตัน2.75.310.512.820.523.933

Mold

เครื่องโครงสร้างและลักษณะทั้งหมด

1.C-Type Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved idea life and machine.

2.Rigid construction guarantees exact die mating,Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.

3.Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.

4.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
